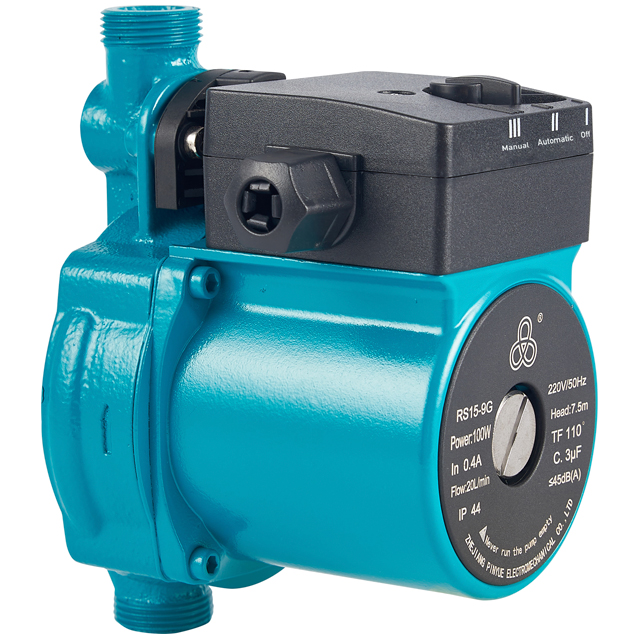

Pressure Boosting Hot Water Circulating Pump for Home Bathroom

Pressure Boosting Hot Water Circulating Pump for Home Bathroom

Technical Data:
◇ Suitable Fluids
Heating water to VD 12035
Heating water
Water/glycol mixtures max.mixing ratio 1:1
◇ Performance
Fluid temprature range: -10°c ~+90°C
Max.working pressure: 6 bar
◇ Ambient Temperature
Permissible up to: 40°C
◇ Power
Main power: 1~230v, 50Hz
◇ Motor
Degree of protection: lP44
Insulation class: F
◇ Construction Materials
Pump body: Cast iron
Impeller: PP
Shaft: Ceramic
Bearings: Ceramic
Mounting Positions
Pump shaft in the horizontal plane
Pump Equipment
Screwed end single head pump
Flow switch automatically control
Non-overloading single phase motor
Cast iron body 180mm port-to-port

Model:
LRS15/9G
Brand:
PINYUE OR OEM
Code:
8413709190

Quantity:
Availability:





Inquire Add to Basket

Product Description

Model	Power (W)	Max.flow (L/Min)	Max. head (m)	Inlet/Outlet (IN)	N.W(kg)
LRS15/9G	120	26	9	¾''	2.3

1-about1

Zhejiang Pinyue Electromechanical Co., Ltd. is a leading manufacturer of circulation pump, Automatic self-priming pumps, centrifugal pumps and other pump products in China. The company is located in the southeast of Zhejiang Wenling Daxi which is the coastal town, PINYUE has built up a certain scale over the years. We are a modern enterprise integrating design,production, testing and service. According
to the changes of the medium in the pump, adopt the corresponding materials and structures, and the performance indicators can be comparable with the same type of products in advanced countries. PINYUE has its won brand and also can accept OEM, ODM and OBM orders.
