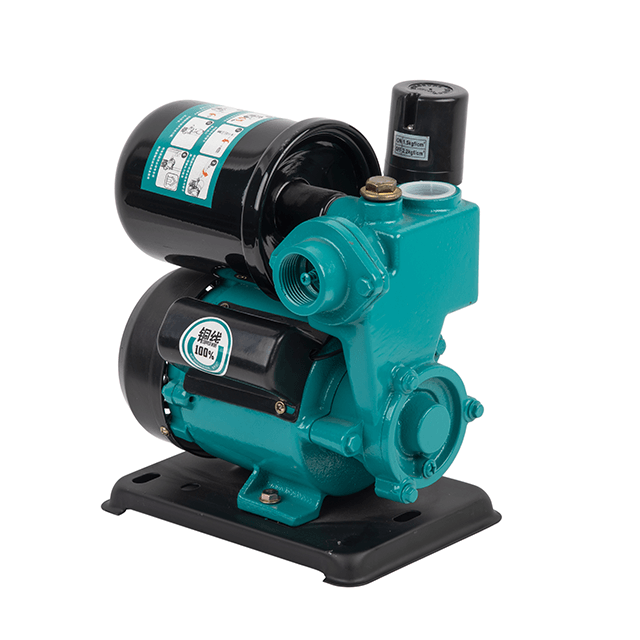

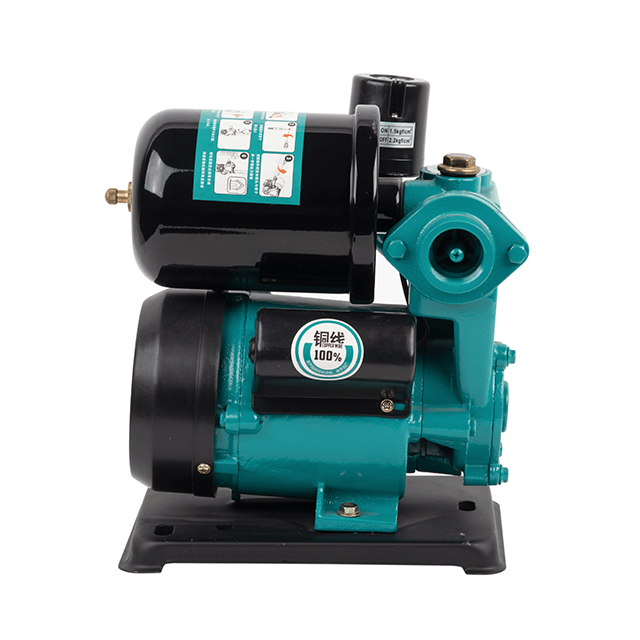

PCJ-370A

Quantity:
Availability:





Inquire Add to Basket

Product Description

Model	Max. Flow (m³/h)	Max. Head (m)	Rated Flow (m³/h)	Rated Head (m)	Max. Suction (m)	Pipe Diameter (mm)	Voltage (V)	Power (KW)	Speed (r/min)	Sunction Range (m)
GP125-A	2	28	0.8	12	8	1	220	0.125	2860	0-18
PCJ-128A	1.8	25	0.8	12	8	1	220	0.125	2860	0-18
PCJ-250A	2	28	1	14	8	1	220	0.25	2860	0-22
PCJ-370A	2.2	32	1.2	16	8	1	220	0.37	2860	0-26
PCJ-550A	2.8	38	1.8	20	8	1	220	0.55	2860	0-30
PCJ-750A	3	44	2.2	25	8	1	220	0.75	2860	0-35
PCJ-1100A	4.5	50	3	30	8	1.5	220	1.1	2860	0-40
PCJ-1100B	4.5	50	3	30	8	1.5	380	1.1	2860	0-40
PCJ-2200A	6	65	3.5	40	8	2	220	2.2	2860	0-45
PCJ-2200B	6	65	3.5	40	8	2	380	2.2	2860	0-45

1-about1

Zhejiang Pinyue Electromechanical Co., Ltd. is a leading manufacturer of circulation pump, Automatic self-priming pumps, centrifugal pumps and other pump products in China. The company is located in the southeast of Zhejiang Wenling Daxi which is the coastal town, PINYUE has built up a certain scale over the years. We are a modern enterprise integrating design,production, testing and service. According
to the changes of the medium in the pump, adopt the corresponding materials and structures, and the performance indicators can be comparable with the same type of products in advanced countries. PINYUE has its won brand and also can accept OEM, ODM and OBM orders.
