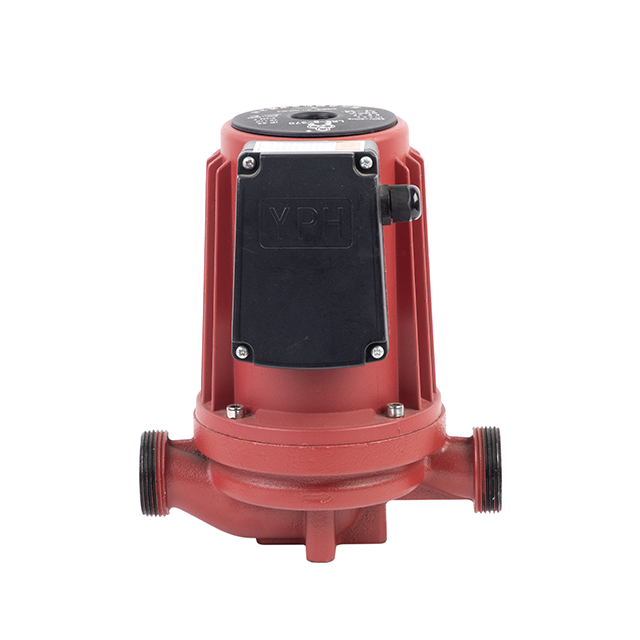

LRS40-16-750

Quantity:
Availability:





Inquire Add to Basket

Product Description

Model	Power (W)	Diameter (mm)	Max. Head (m)	Max. Flow (m³/h)	Weight (kg)	Installation length (mm)
LRS15-8.5Z(B)	100	15	8.5	30	3	160
LRS-4	65/46/30	25	4	40	2.5	130
LRS-6	100/67/46	25	6	52	2.8	130
LRS-9	200/180/115	40	9	70	2.8	160
LRS-10	320/305	25	10	80	4	160
LRS-14	320/305	25	14	52	4	180

Model	Power (W)	Diameter (mm)	Max. Head (m)	Max. Flow (m³/h)	Weight (kg)	Installation length (mm)
LRS40-8-370	370	40	8	160	13	220
LRS-40-13-550	550	40	13	180	13	220
LRS-40-16-750	750	40	16	200	18	250
LRS-40-19-1100	1100	40	19	2200	21	250
LRS-50-16-1500	1500	50	16	320	29	300
LRS-50-20-2200	2200	50	20	400	32	350

1-about1

Zhejiang Pinyue Electromechanical Co., Ltd. is a leading manufacturer of circulation pump, Automatic self-priming pumps, centrifugal pumps and other pump products in China. The company is located in the southeast of Zhejiang Wenling Daxi which is the coastal town, PINYUE has built up a certain scale over the years. We are a modern enterprise integrating design,production, testing and service. According
to the changes of the medium in the pump, adopt the corresponding materials and structures, and the performance indicators can be comparable with the same type of products in advanced countries. PINYUE has its won brand and also can accept OEM, ODM and OBM orders.

1-about3 2-team 3-workshop-1

products favored by customers

Standardized production process and strict quality control make our

3-workshop-2 3-workshop-3 4-certificate-1
